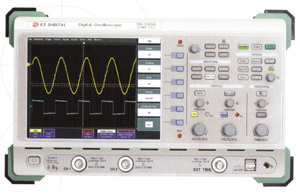

數字存儲示波器DS-2350

ZX21

訂貨號：zy380582 品牌：韓國EZ.DIGITAL 產 地：韓國市場價：折扣價：發貨周期：現貨或5天內

加入收藏

打印產品信息

產品評價

加入對比

分享到：分享儀器

本月特價

熱賣產品

貨到付款

現場演示

延長保修

終身維修

產品描述技術方案相關儀器最新上架商品咨詢使用評價

韓國EZ.DIGITAL 數字存儲示波器DS-2350介紹 350MHz帶寬，每通道1G采樣率，需要預定。 DS-2000 series is adopted with the latest technologies to enable users to take advantage of the advanced functions for more precision purposes. It’s featured with DC to 350MHz, 1GS/s real time sampling rate per each channel designed to measure high-voltage up to 20V/div by using general test probes. DS-2000 series provides a variety of interface modules such as RS-232C,Ethernet,Centronics Printer port, USB Host Video Port. Especially Ethernet(100base-T)interface as a stard accessory provides an easy way to have access to the network to get the necessary information while working. In addition, USB 2.0 Host is suitable for saving or transferring high capacity data by using external devices. One of the distinguished features is that DS-2000 series is equipped with 8.4”TFT Color LCD Touch Screen. It results in our best effort toward enabling all of you to enjoy high-end features at an economic price providing the optimum work environment as well as the work efficiency. General Features Frequency Bwith:DC～250Mhz:DS-2250 DC～350Mhz:DS-2350 1GS/s Real-time Sampling Rate per each channel. 50GS/s Equivalent Sampling Rate per each channel. 8.4”TFT Color LCD Display (640×480 pixel),2 CH dual Digitizer Enhanced display capability through Analog Persist Graphic User Interface Advanced Measurements are available by using dedicated 32bit Digital Signal Processor Single shot Bwidth:Max.100MHz Convenient Functions Long Memory length Max.100Kbytes per channel for flexible Waveform Zoom In/Out (1Mbytes:option) Real Time FFT function Auto Trigger Level Setting to 50% Fast Trigger On/ Off Hold Off User Friendly Interface (USB 2.0 Host, Video port,GPIB,Ethernet,RS-232C,Centronics printer port) Save & Recall (non-volatile):USB Memory or Internal Flash Memory Multi languages Built in Help menu
數字存儲示波器DS-2350功能描述
VERTICAL SYSTEM
Input Channels	2 channels& 1 extemal channel
Analog Bwidth	350MHz (-3 dB) at 50 Ohms
Rise time	typical 1.2 ns
Single shot Bwidth	Max. 100 MHz
Bwidth Limits	20MHz, 100MHz
Vertical Resolution	8 bits resolution
Polarity	Normal Invert
Position range	±15 Div
Input Impedance	1 Mohms ±1% in parallel with 13pF ±2pF;50 Ohms ±2% Manually selectable
Input Coupling	AC,DC,GND
Maximum Input	50 Ohms:5Vrms,1Mohms:400 Vmax (peak AC≤5KHz+DC)
Senstitvity	2mV-20V/div,Fine SCALE
DC Gain Accuracy	±2% of full scale
Offset Accuracy	±2% of full scale
Dynamic Range	Over 8div at 350 MHz
Channel-to-Channel Isolation(crosstalk)	Measured on one channel,with test signal applied to anather channel, with the same scale coupling settings on eachchanel,typical≥100:1(-20 dB)
Probe ID	10:1,1:1 Auto selection
Noise Peak-to-Peak	3% of full scale
TIMEBASE SYSTEM
Sample Rate per Channel	1 GS/s, Rom Interleaved Sampling 50 GS/s for repetitive signals
Ranges	1 ns/div –100 s/div(1-2-5 increments)
Equivalent Sampling	1ns/div –50 ns/div
Roll Sampling Range	50 ms-100 s/div
Clock Accuracy	≤20 ppm
Cloc RMS Jitter	3.4 ps
Interpolator Resolut	20 ps at 1 ns/div per channel
Acquisition Modes P	Captures glitches as narrow as 4 ns
Sample	Sample data only
Average	Waveform data from 2 to 256 (selectable) acquisitions is averaged
Reference Positions	Left,Center,Right
Delayed Trigger Rang	Pre-trigger (negative delay): Greater of 1 screen width or 1 ms;Post-trigger(post-trigger(positive delay):50 seconds
XY	～100 KHz
數字存儲示波器DS-2350其它
	TRIGGERING SYSTEM Modes Nomal,Auto,Single Types Edge Conventional level-driven trigger,Positive or negative slope on any channel,Coupling selections:DC,AC,HF reject,LF reject Video Supports NTSC,PAL,SECAM; Advanced Trigger Supports 12C,USB,UART,Pulse Width Sources Any input channel,extemal,Ext/10 or line;slope,level, coupling unique to ech source (except line trigger) Coupling modes DC,AC,HFREJ,LFREJ Trigger level range INT:±8div;EXT:more than ±30%;Extemal/10 TRIGGER:TBD Edge trigger sensitivity TRIGGER FREQUENCY SENSITIVITY 5vM～5V/div 1mV～2mV/div INTERNAL(CH1,CH2) DC～10MHz 0.5div 10MHz～100MHz 1.5div 100MHz～350MHz 2div EXTERNAL DC～150MHz 0.2Vp-p 150MHz～350MHz 0.5Vp-p SET LEVEL TO 50% operates with input signale≥45Hz,more than±0.2div Max trigger frequency 350MHz Trigger holdoff range Max.50s Extemal Trigger Maximum ext.input @ 1 Mohms 400 Vmax(DC +peak AC <5 KHz) Trigger Event Alarm EventCheck:Text,LED,Print MATH & MEASUREMENT TOOLS Stard Math Tools Add,subtract,multiply,divide Pass/Fail(Go/Nogo) ON/OFF,CH1/CH2 EDIT Real Time FFT Real time;Point:2048 points Typical;Source of FFT:Analog channels 1&2 Wihdow:Rectangular,Flattop,Hamming,Hamming Blackman Stard Measure Tools Automatic Waveform Measurements-P-P,RMS,Average,Mean,Freq.,Rise/Fall time,Period,Positive Width,Negative Width,Duty Ratio,+Overshoot,-Overshoot,High,Low,Max,MinAmplitude,RPM Extended Measure Tools Cycle Mean,Cycle RMS,Burst Width,Delay,Phase CONVINIENT UTILITIES Auto-setups Automatically sets timebase,trigger, sensitivity to display a wide range of repetitive signals Detailed Spec.:Input Couple:DC or AC(Auto Detect);BW:10Hz～350MHz;more than 30mV Storage Save/Recall(non-volatile):USB Memory or Internal Flash Built-in Help System Yes DISPLAY CHARACTERISTICS Type VGA8.4”TFT Color LCD,640×480 pixels Intensity Controls Yes Number of Traces Max.4 traces Grid Styles Graticules:Full,Cross,Board;Fomat:XY,YT Waveform Styles Dots,vectors Display Style Analog View Windows 2 Windows(1 for Zoom) I/O INTERFACE RS-232C Baud Rate up to 115200 bps DB-9 male connector GPIB Optional Ethemet 100Base-T Thermal Printer Optional Centronics Parallel Hard Copy Port Available Printers PCL 3 Compatible Deskjet,Laserjet,Epson,Cannon,Samsung Model:TBD USB Host USB 2.0 Video Port Optional Touch Pad Optional ENVIRONMENTAL AND SAFETY Pollution Degree Pollution Degree 2,Typical home or office environment. Installation Category Category II Ambient Temperature Rated accuracy:+10℃;Operating range:0℃ to+40℃ Huity Rated accuracy:45～85%RH;Product Safety;UL Stard UL 3111-1;cUL Stard CSA-C22.2 No.1010-1 POWER REQUIREMENTS Source Voltage&Frequency 90-250 VAC at 48-440Hz,Automatic AC voltage selection Power Consumption Max.100W Line Fuse Extemal, User Replaceable International Power Plugs Optional CALIBRATION Calibrator Signal(Probe compensator) Typical 1.0V into≥1M Load;frequency:Approx.1 KHz Calibration Period Calibration recommended yearly Auto Calibration Ensures specified DC timing accuracy is maintained for 1 year minimum PHYSICAL DIMENSIONS Dimensions (HWD) 234mm×384mm×226mm Weight Approx.4 kg Stard Weight Approx.5 kg ACCESSORIES Stard Accessories Probes:10x passive probes;Documentation:User manuals in several languages;Programmer’s Manual in English;RS232C Cable; Optional Accessories Hardware Options Memory-1 Mpts/ch;USB Memory;USB Mouse;USB Key B/D;GPIBKit;Thermal Printer&Thermal Printer Paper;Ethemet to USB convertor Software Options Softview Pro Probes Differential Probe series Current Probe series High voltage passive probe series
